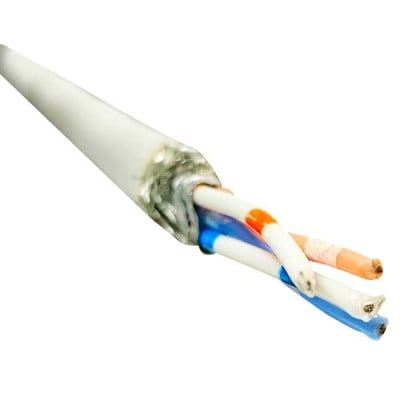

ARINC 646 CAT 5 DATA BUS CABLE

• ARINC 646, Cat 5, LAN, 10 Base T

4 Conductors

• • 2 Twisted Pairs
    • Conductors: 24 AWG tin plated copper
    • Insulation: High temperature flouropolymer

Color Code:

• • Pair 1: White/Blue, Blue/White
  • Pair 2: White/Orange, Orange/White

Overall Cable:

• Shield 1: Aluminum/Mylar foil
• Shield 2: 38 AWG tin plated copper braid
• Jacket: White high temperature flouropolymer (laser markable)

Physical Characteristics

• Outer Diameter: 0.234 inches nominal
• Bend Radius: 1.2 inches nominal
• Weight: 3.0 lbs/100 feet nominal
• Temperature Range: -55° to +200° C
• Skydrol Resistant: Yes

Electrical Characteristics (each pair)

• Impedance: 100 Ohms nominal
• Capacitance: 12.4 pF/ft maximum
• Velocity of Propogation: 78% nominal
• Skew: 12.8 ns/100 ft BUS
• Attenuation: 10 MHz 2.1 dB/100 ft nominal
