AVEO POWERBURST NG DAYLITE LIGHT SET – GREEN / RED / WHITE
SKU: N/D
Categorías: ELECTRICAL, STROBES
681.67$ + IVA
Overview

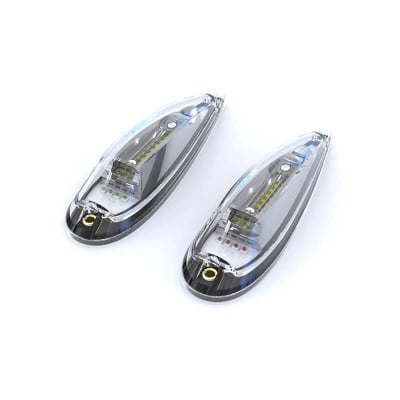

| At only 26 millimeters in height (1.024 inch) the new PowerBurst NG™ DayLite is a value light that does not sacrifice anything in performance or standards as other economy-priced lights offered by the competition The exclusive and highly advanced optics and chrome reflector system, unmatched power and LED management circuitry, and Aveo’s famous lowest-drag profile in the industry are all combined into a product that gives you unmatched POWER and FEATURES. Lower, narrower and shorter PLUS much lighter than industry lights in this category! For Experimental Use Only. Not approved for installation on certified aircraft. This is not a TSO certified light. |
Features
- 3-in-1 Nav/Position/Strobe
- Extremely lightweight
- Unmatched circuit technology
- Waterproof
- Vibration-proof
- Shock-proof
- Dust-proof
- Limited 3yr Warranty – Product must be registered within 30 days of purchase Here
Specifications
- Dimensions (mm): 115 mm x 33 mm x 26 mm
- Dimensions (inches): 4.547” x 1.302” x 1.024”
- Weight: 70 g / 2.47 oz
- Operating Voltage Range: 9 – 18 V DC
- Input Current – Position / Nav – green (@14V): 0.28 A
- Input Current – Position / Nav – red (@14V): 0.23 A
- Input Current – Strobe (@14V): 2 A peak
- Output Power – Position / Nav – green: 3.3 W
- Output Power – Position / Nav – red: 2.5 W
- Output Power – Strobe: 24 W peak
- Repetition Rate of Strobe: 50 cycles per minute
- Recommended size of mounting screw: M3, stainless steel recommended. Length depends upon placement location on wing tips.
- Ambient Temperature: From -40°C to +85°C, -40°F to +185°F
- Overheat Protection: Yes
- Reverse Polarity Protection: Yes
- Transient Voltage: No
- Under-Voltage Protection: No
- Over-Voltage Protection: No
- Waterproof, Dust-proof, Shock-proof, Vibration-proof: Yes
Documents
- Installation Manual (PDF)
- BASE COLOR:
Black Base, White Base, Red/Green Base
