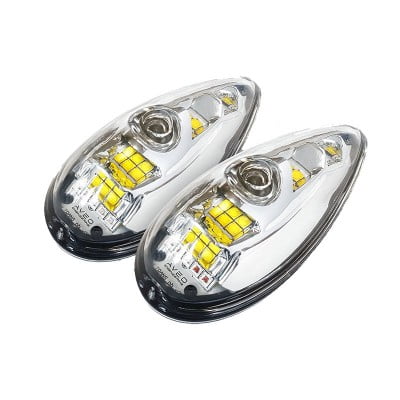

AVEO ULTRA EMBEDDED GALACTICA 2-IN-1 NAV / POSITION / STROBE LED LIGHTS – TSO’D
Part# 05-08364
Overview
| The Ultra Galactica™ Series lights are a very popular choice for general aviation aircraft of any size, due to their compact design and easy installation. With full optical testing for brightness and chromacity, the Ultra also completed the rigorous DO-160F testing regime exceeding all requirements. The Ultra has also become the leading winglight solution for numerous military and law enforcement/surveillance UAVs around the world and is very popular with aircraft manufacturers. Encapsulated in the exclusive AveoDiamidium™ formulation and with our goniophotometer-optimized chromed reflector system, the Ultra wing lights are virtually unbreakable. Packed with 27 ultra high brightness LEDs that are the industry state-of-the-art in performance and output lumens, the Ultras still feature the same tiny footprint the popular Aveo e-series wing lights have become so well-known for in the aviation world. These aircraft lights meet both TSO C30c and C96a design specifications and EXCEED the requirements of TSO C30c, C96a, SAE AS 8037 and AS8017A, plus DO-160. |
Features
- Position / Strobe LED light
- Extremely Lightweight at 83 grams
- 9-32 volt DC input range
- No External Power Supply or Strobe Unit
- Light Synchronization Feature
- Unbreakable Diamidium™ encapsulation
- Unmatched Circuit Technology
- Advanced Computer and Goniophotometer Engineered Optics
- Limited Warranty – Product must be registered within 30 days of purchase Here
Specifications
| Dimensions (mm): | 100 mm x 46.2 mm x 34.1 mm |
|---|---|
| Dimensions (inches): | 3.94” x 1.819” x 1.34” |
| Weight (g): | 113 g |
| Weight (oz): | 3.985 oz |
| Operating Voltage Range: | 9 – 36 Vdc |
| Input Power P/N: AVE-WPSG-64G Mod(4) – Nav Green: | 9 V / 0.42 A : 3.78 W 14 V / 0.28 A : 3.92 W 28 V / 0.15 A : 4.20 W 36 V / 0.12 A : 4.32 W |
| Input Power P/N: AVE-WPSG-64G Mod(4)Strobe: | 9 V / 5.65 A : 50.85 W 14 V / 2.78 A : 38.92 W 28 V / 1.29 A : 36.12 W 36 V / 1.00 A : 36.00 W |
| Input Power P/N: AVE-WPSR-64G Mod(4)Nav Red: | 9 V / 0.37 A : 3.33 W 14 V / 0.25 A : 3.50 W 28 V / 0.13 A : 3.64 W 36 V / 0.11 A : 3.96 W |
| Input Power P/N: AVE-WPSR-64G Mod(4)Strobe: | 9 V / 5.62 A : 50.58 W 14 V / 2.79 A : 39.06 W 28 V / 1.29 A : 36.12 W 36 V / 1.00 A : 36.00 W |
| Repetition Rate of Strobe: | 50 cycles per minute |
| Recommended size of mounting screw: | M5x45 mm (DIN7984) or equivalent |
| Torque requirement for screw M5x45mm: | 1.2 Nm |
| Ambient Temperature: | from -55°C to +85°Cfrom -55°F to +185°F |
| Overheat Protection: | Yes (+85°C) |
| Reverse Polarity Protection: | Yes |
| Transient Voltage: | 80V at 2sec max, both polarities |
| Under-Voltage Protection (lockout): | Yes (9V) |
| Over-Voltage Protection (lockout): | Yes (36V) |
| Waterproof, Dust-proof, Vibration-proof: | Yes |
