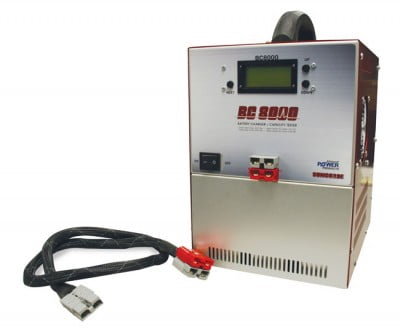

BC-8000 BATTERY CHARGER & CAPACITY TESTER

Capacity Tester Features:
• Adjustable constant current load in 0.1 Ampere increments from 0.5 Ampere to 15 Ampere (+/- 1.5%)
• Adjustable constant current load in 1.0 Ampere increments from 15 Ampere to 55 Ampere (+/- 1.0%)
• USB 2.0 port for PC connection
• BC Report Utility software for hard copy printout of test results

Charger Features:
• Adjustable output from 3.0 to 36.0 Vdc
• Adjustable output amperes from 0.05 to 25 Adc
• Constant voltage (CV) or constant current (CC) charge
• Adjustable charge time from 1-999 min
• Single or two step charge routine

Common Features:
• Universal AC power input 90~264vac (47 to 64Hz)
• 10mv voltage resolution 4 line LCD display
• Over temperature protection
• Audio warning when capacity test is complete or if
the unit malfunctions
• Real time internal clock with battery backup

For use on Nickel Cadmium or Lead Acid Batteries.
