ESD-1 STATIC WICK NON-CERTIFIED

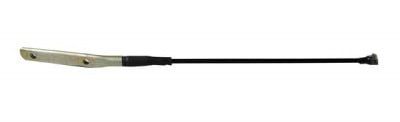

ESD-1 Static Wick

• Length: (including mounting base) 7.65 inches. (discharger element) 4.75 inches
• Distance between mounting holes: 1.1″
• Weight: Less than 4.5 grams
• Airspeed: To 150 knots
• Altitude: To 20,000 feet msl
• Temperature: +85°C to -55°C, MIL-STD0202C, Method 102A, Condition D
• Tension: 50 pound pull longitudinal from plastic end to metal shank
• Solvents: No physical changes after one hour immersion in aviation gasoline, jet fuel or hydraulic fluids
• Equivalent to Cessna P/N C592001-0201

Note: This is Non-Certified Version.
