Overview

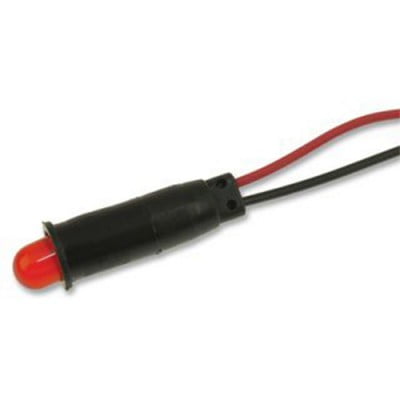

| LED panel mount, Snapfit, Low Profile red Indicator Light with diffused lens. These are constructed with a low profile black nylon housing with integral bezel. It is supplied with two color-coded 6-inch wire leads. It is available in 24VDC. Indicators Snapfit into 6.35mm diameter mounting hole with a recommended panel thickness range of 2.90 to 3.30mm thick. It has current of 20mA typical. |
Specifications
- Mounting Hole Dia: 6.35mm
- LED Color: Red
- Forward Current If: 20mA
- Forward Voltage: 24V
- Luminous Intensity: 10mcd
- Viewing Angle: 60°
- Bulb Size: 5.08mm
- Lens Width: 7
- Lens Color: Red
- Color: Red
- RoHS Compliant: Yes
Documents
- Tech Data Sheet (PDF)
