Overview

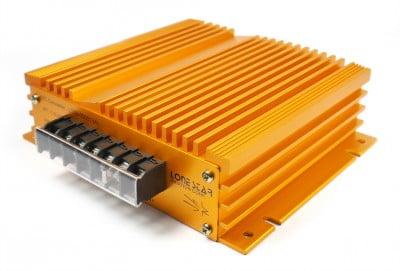

| With this TSO-C71 DC to DC Converter you can operate 12 Volt Radios, GPS’s, and Electronic Devices in a 24 Volt Aircraft.Physical Features Size: 6.0″W x 5.0″D x 1.75″H Weight: 1.5 lbs. Color: Gold Anodized Material: Aluminum Extrusion |
Specifications
- Input Voltage: 22-32 VDC
- Output Voltage: 13.8 VDC
- Efficiency: 89% (24 VDC @ Full Load)
- Regulation: Line-Load = .03 VDC
- Ripple: .005 Volts at 400hz
- Altitude: 50,000 Ft.
- Over Current : 110-140% > 5A Auto Recovery
- Terminal Block: (5) Phillips Pan Head Screws
- MTBF: 100,000 Hrs./According to Mil HBK 217F
- Output Current: 10 A, 12 A Peak at 13.8 VDC
- Temperature: -55C to (+) 70C
- TSO Category: Category A
