Overview

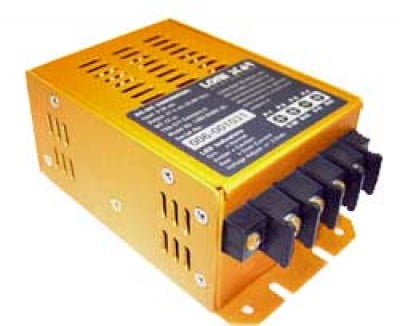

| Lone Star Aviation’s new 12V STEP-UP Converter is the smallest (3″ x5″ x 2″), most efficient (93-95%) and the most versatile STEP-UP aircraft converter in our industry today. RTCA/DO 160D tested to operate 28V NAC/COM radio equipment such as KX 155, KX 165, KY 196A, KY 196B, and Motorola VHF transceivers on 12V aircraft. Additional 28V electronic devices are HSI, cameras, audio panels, battery backup systems, etc. TSO : TSO-C71 / FAA APPROVED : LS03-05002-B |
Features
- Ultra-Small size: 2.5″ x 4.5″ x 2.0″
- Light Weight
- Potentiometer for output adjustments
- Universal Mounting
- LED Status Indicators
- Easy Installation
- Optional Connector: MS 3102 Receptacle
Specifications
- Input Voltage: 9-20 Vdc
- Input Transient Surge protection: Mil Std-704D
- Input: Reverse polarity protection
- Output Voltage: 27.5 Vdc
- Output Current: 8 Amps, 10 Peak
- Efficiency: 90% (13.5 Vdc @ 8A)
- Short Circuit: Auto Recovery
- Over Voltage: 20 Vdc Max
- Over Current: 110-140% > 11.0A Auto Recovery
- Output Ripple: 20-25mVp-p
- Terminal Block: (4) Phillips Pan Head Screws
- MTBF: 100,000 Hrs./ According to Mil HBK 217F
- FAA Approvals: TSO- C71
- Altitude: 50,000 Ft
- Mechanical: 2.50W x 4.5L x 2.0H
- Weight: .70lbs, 320 grams
- Temperature: -55C to (+) 71C
- Circuit Protection: OV, UV, SC, SP, RP, OC
- Regulation Load: +/- .5%
- Ripple Input/Output: 20-25mVp-p
- Transient response time .5 ms
- TSO Category: Category A
