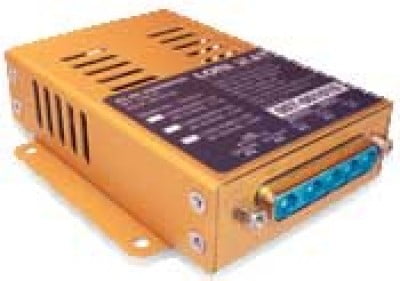

LONESTAR DC TO DC CONVERTER
Categorías: ELECTRICAL, POWER-CONVERTERS
Overview
| Ultra Small ( 2.5 x 3.5 inch) dc converter, the installer now has multiple mounting points. Its narrow body shape, mounting brackets, multiple voltages, and FAA-TSO make it the ideal candidate for aircraft and rotorcraft installs. With more demanding and sophisticated aircraft applications like EFB’s systems, cell phone charging, computers, LCD, entertainment sub-systems this dc power supply is a real winner. |
Features
- Ultra Small size 2.5″ x 3.5″ x 1″
- 93% Efficiency rating
- Light Weight 100 grams / 0.220 lbs
- Current Sharing up to 5 units
- SMT Technology
- Potentiometer for output adjustments
- Universal Mounting (No Thermal concerns)
- LED Status Indicators
- Operating Temp: -55C to +70C
- Circuit Protection: OV, UV, SC, SP, RP, OC
- Regulation Load: 1.0%
- Ripple: 18mVp-p
- Transient response time .5 ms max at 13.8vdc
- Easy installation
- FAA TSO-C71 Approved
