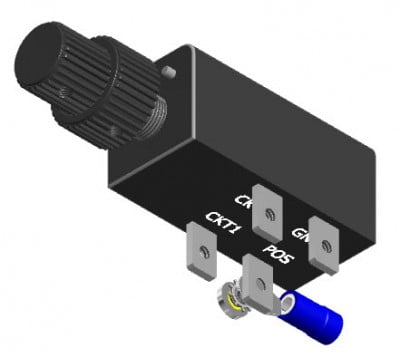

MICRODIM DUAL CHANNEL DIMMER

SKU: N/D Categorías: ,

Overview

Microdim Dual Channel Dimmer – Dual Channel Unit

5 to 35 VDC, 0-7.5 A per channel, Control over 210 Watts In a .9″ Inch square by 1.9” Package.

Complete compact, light weight, powerful, solid state PWM dimmer. Sized for those tight panels with smaller dimensions and depth of 1.9″.

Bushing Selection: Please select the 6mm bushing for panel thickness of 2.2mm/.086″ or less, and 11mm bushing for greater panel thicknesses.

Lighting Selection: The Incandescent version will also control electroluminescence lighting. The LED/Incandescent version will control LED on one channel, and incandescent on the other.

Documents

Specifications

    • Voltage Range: 5VDC to 35VDC
    • Max Current: 7.5 A per channel
    • Dual channel device is the – “J”
    • Single channel device is the – “I”
    • Controlled Output: 5-35 VDC, 0-7.5 A per channel, Control over 210 Watts in a .9″ Insh square by 1.9″ Package
    One or two channel units
    • Capacity:
    • 37.5 Watts @5 VDC each channel
    • 90 Watts @12 VDC each channel
    • 210 Watts @28 VDC each channel
    262 Watts @35 VDC each channel
    • Install with Standard Supplied solderless ring lug terminal
    • Potentiometer Rotation: 270° Rotational Life: 500K Turns
    • Internal temperature Protect: +85° C
    • Storage Temperature: -40° C to +100° C
    • Maximum Internal Temperature: @15A +15° C
    • Enclosure Material: Avantra 8731 polystyrene Meets UL 94
    • Flame Rating: Meets UL94V-0 (@ 0.062”/1.5 mm min.) rating
    • Conforms to RTCA/DO-160E SEC 21: RFE (EMI)
    • One Year limited warranty
    Weight: 1.31 oz including knobs

Features

  • Dual Channel control of aircraft Lighting – P/N 9100-001-J
  • Aircraft instrument panel lighting
  • Excellent control of Nulite instrument lighting
  • LED PWM dimmer, low range enhanced
  • RTCA/DO-160E SEC 21: RFE Qualified
  • Instrument Panels
  • Nulite dimmers
  • UMA dimmer
  • LED Glare shields, overheads
  • Avion Glare shield dimmer
  • LED lit panels
  • Hundreds of DC Lighting Control applications
  • Assembled in the USA

In The Box

  • MaxDim Micro unit
  • Installation instructions
  • Color coded terminals
  • Reference panel label
  • Knob/s
    • Lighting:

      Incandescent Only, LED Only, LED/Incandescent

    • Bushing:

      6mm Bushing, 11mm Bushing
