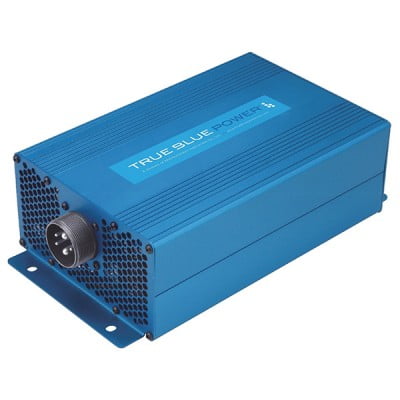

MID-CONTINENT TRUE BLUE DC TO AC STATIC INVERTER 1200 WATTS / 115 VAC / 400 HERTZ

Part# 11-16366

Overview

The TI1200 DC-to-AC static inverter produces 115 volts at 4000 Hz for 1200 watts of “wall outlet” power from an aircraft’s 28 VDC input. Lighter and smaller than competing inverters, the TI1200 has the same connector and footprint of legacy designs, plus overload and short-circuit protection up to 150% of the rated load.

General Purpose 400Hz aircraft power.

Features

  • Supplies 1200 watts of power to multiple cabin accessories, galley equipment and entertainment systems
  • Ideal for use in emergency medical service, law enforcement and VIP cabin configurations
  • Compact design — 30% smaller than competing products
  • Lightweight — 7.3 lbs
  • 85 – 90% efficient
  • Input transient, overload and short-circuit protection — up to 150% of rated load without damage
  • Remote On/Off optional
  • FAA TSO-C73 certified
  • EASA ETSO-C73 certified
  • RTCA DO-160G qualified

Specifications

  • Input Voltage: 20 – 36 VDC
  • Input Current: 50A at 28 VDC input
  • Output Voltage: 115 VAC ± 3%
  • Output Power: 1200 VA
  • Output Frequency: 400 Hz ± 0.1%
  • Output Waveform: Single phase, true sine wave, < 3% total harmonic distortion
  • Weight: 7.3 lbs
  • Altitude: 55,000 ft
  • Humidity: Tested to greater than 95% for 10 days, temperature cycle of 75° F to 160° F
  • Temperature: –65° F to +160° F (-55° C to +70° C)
  • Integral Cooling: Dual, electronically-controlled brushless fans
  • Mating Connector: MD3106A24-12S / MS3057-16A (cable clamp / backshell)
  • Case: Anodized aluminum extrusion, blue
  • Certification: FAA TSO-C73 certified / EASA ETSO-C73 certified / RTCA DO-160G qualified
