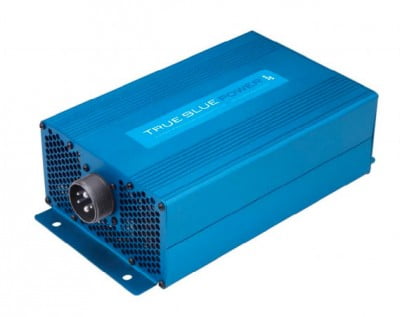

MID-CONTINENT TRUE BLUE DC TO AC STATIC INVERTER 1200 WATTS / 230 VAC

Part# 11-14268

Overview

The TI1200 Series DC-to-AC Inverter produces 230 volts at 50Hz for 1200 watts of “wall out” power from the aircraft’s 28 VDC input. It is ideal for in-flight entertainment and galley equipment, such as microwaves and coffee makers.

Features

  • Supplies 1200 watts of power to multiple cabin accessories, galley equipment and entertainment systems
  • Ideal for use in special mission and VIP cabin configurations.
  • Compact design — 30% smaller than competing products
  • Lightweight — 7.3 lbs
  • 85 – 90% efficient
  • Input transient, overload and short-circuit protection — up to 150% of rated load without damage
  • Remote On/Off optional
  • FAA TSO-C73 certified
  • EASA ETSO-C73 certified
  • RTCA DO-160G qualified
  • Designed and built in Wichita, Kansas, USA
  • Two-year limited warranty

Specifications

  • Input Voltage: 20 – 36 VDC
  • Input Current: 45A at 28 VDC input
  • Output Voltage: 230 VAC ± 3%
  • Output Power: 1200 VA
  • Output Frequency: 50 Hz ± 0.1%
  • Output Waveform: Single phase, true sine wave, < 3% total harmonic distortion
  • Weight: 7.3 lbs
  • Altitude: 55,000 ft
  • Humidity: Tested to greater than 95% for 10 days, temperature cycle of 75° F to 160° F
  • Temperature: –65° F to +160° F (-55° C to +70° C)
  • Integral Cooling: Dual, electronically-controlled brushless fans
  • Mating Connector: MD3106A24-12S, MS3057-16A (cable clamp / backshell)
  • Case: Anodized aluminum extrusion, blue
  • Certification: FAA TSO-C73 certified, EASA ETSO-C73 certified, RTCA DO-160G qualified
