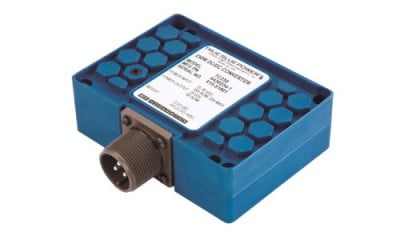

MID-CONTINENT TRUE BLUE POWER TC240 VDC TO VDC CONVERTER

Part# 11-17843

Overview

The model TC240 VDC/VDC Power Converter that supplies 240 watts of 5 to 18-volt power to electronic equipment, including lighting and cabin accessories.

Features

  • Lightweight — 0.7 lbs
  • 240 watts output power
  • 95% efficiency
  • Input Voltage: 24 – 32 VDC
  • Input Current: 10.0 A Nominal
  • Output Voltage: 5 – 18 VDC adjustable
  • Input transient, overload and short circuit protection, temperature monitoring, reverse polarity
  • Rated from –67°F to +158°F (-55°C to +70°C)
  • Mating Connector: MCI P/N 9018654 (included)
  • FAA TSO-C71 certified and RTCA DO-160G qualified
  • Designed and built in Wichita, Kansas, USA
  • Two-year limited warranty

Specifications

  • Input Voltage: 24-32 VDC
  • Input Current: 10.0 A Nominal
  • Output Voltage: 5-18 VDC adjustable
  • Output Power: 240 watts
  • Efficiency: 95%
  • Weight: 0.70 lbs (0.32 kg)
  • Altitude: 55,000 ft
  • Temperature: -67°F to +158°F (-55°C to +70°C)
  • Protection: Input transient, overload and short circuit protection, temperature monitoring, reverse polarity
  • Mating Connector: P/N 9018654 (included)
  • Case: Anodized aluminum, blue
  • Certification:FAA TSO C71 certified / RTCA DO-160G qualified
