P1 MOMENTARY SWITCHES

Categorías: ,

Overview

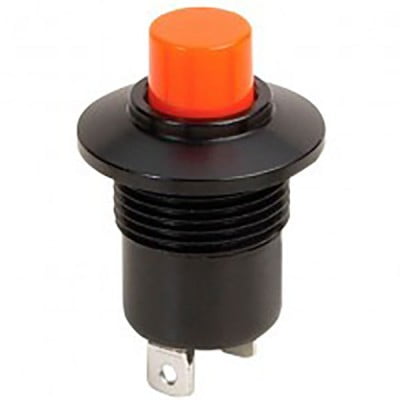

The P1 is a sealed, dustproof, snap action, military grade switch ideal for switching low level up to 10 amps. It features screw terminals, and includes screws, lockwashers, and solder lugs. MIL qualified. Dustproof, snap action, screw terminals, rugged reliable construction.



Electrical: (at 28VDC or 115VAC, 60/400 Hz.)
LoadAmperesLife (Nominal)
Resistive1025,000 cycles
Inductive/Motor525,000 cycles
Lamp325,000 cycles



Features

  • Button sealed with patented “rolling sleeve” principle
  • Contact area sealed at button & terminals
  • Less than 25mΩ contact resistance
  • Ideal for low level switching as well as up to 10 amp duty
  • Positive tactile feedback
