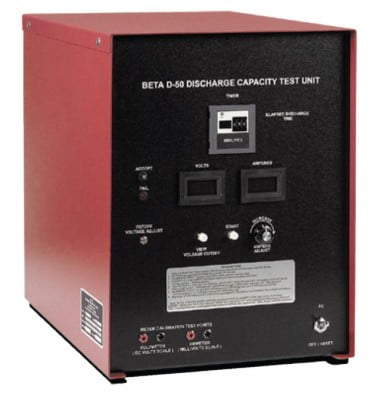

POWER PRODUCTS BETA D-50 BATTERY ANALYZER 50 AMP

Categorías: ELECTRICAL, VOLTAGE|CONTROLS

Part# 11-13889

Descripción

Overview

Discharge capacity tester for all types of Nickel Cadmium, sealed or vented Lead Acid aircraft batteries

Features

Services any voltage or type of battery.
Constant current discharge adjustable from 0.1 to 50 amperes.
Selectable low voltage cutoff.
Selectable discharge time from 1 to 999 minutes with digital elapsed time readout.
Audible alarm at end of test. Meters & timer lock-in their reading for amp-hr capacity.
Accept and Fail lights for simplified GO/NO-GO test.
Operates on either 115 or 230 VAC.

Operation

Set discharge time.
Set low voltage cutoff.
Set discharge current.
At end of test, observe Accept/Fail light or check the battery’s amp-hr capacity on the locked-in digital meters.

Controls

Low voltage cutoff selector.
Digital discharge timer, 1 to 999 minutes.
Multi-turn discharge current selector.
Digital voltmeter and ammeter.
AC switch.
Accept/Fail and On/Off lights.
AC line selector – on rear, 115 or 230V.

Specifications

Model and P/N: BETA D-50.
Adjustable 0-50 amp discharge, accuracy ± 0.1 digit.
#8 AWG DC battery cable with “Elcon” type connector.
AC input: 4A @ 115V, 2A@ 230V 50/60Hz.
NSN: 6130-01-462-6337; 6130-21-258-4430 (Canada).
Dimensions: 10¼”L x 14”H x 15”D.
Weight: 30 lbs.
