Part# 11-16353

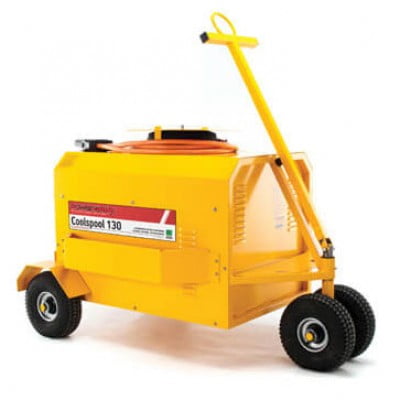

The Coolspool 130 28V DC battery cart is designed to suit the requirements of a range of applications, from small corporate jet and medium size helicopter operators and FBOs to large fleet operators or FBOs supporting multiple DC business aircraft and requiring more capacity for frequent starts, compressor washes or avionics use.


  • High powered sealed lead acid AGM batteries
  • Cleared for air transportation
  • 75A 28V DC internal power supply / charger
  • Charging / charge complete LED indicators
  • ‘Aircraft mode’ switch for continuous 28V DC power to aircraft
  • Corrosion resistant galvanised frame with aluminium panels
  • Removable tow arm
  • Pneumatic tyres
  • Spare wheel fitted to roof
  • Aircraft cable with heavy duty Nato connector
  • Harsh environment input cable with plug
  • Heavy duty output isolator with replaceable contacts
  • Security ‘R’ clip isolator lock
  • Sold state voltmeter with ‘push to view’ feature
  • Sold state ammeter with ‘push to view’ feature


  • Peak amps: 4000 amps
  • Nominal voltage: 26V or 28V DC depending on model
  • Standing voltage: 27.8V DC or 30V DC depending on model
  • Amp/hour capacity: 130Ah @ 10hr rate (20C)
  • Operating temp: -40C to +50C (-40F to +22F)
  • Case: Galvanised steel frame with alloy panels
  • Voltmeter / ammeter: Solid state LED, IP65
  • Aircraft cable: 4m (13ft) with heavy duty rubber Nato connector
  • Output current: 75A @ 28V DC (aircraft mode)
  • Charger: 75A 2-stage internal charger (charge mode)
  • Input voltage: 180-264V AC / 47-63Hz
  • Input current: 16A @ 230V AC / 20A @ 180V AC / single phase (typical)
  • Input cable: 3m (9ft) with 16A 3-pin 6h blue plug
  • Cooling: Forced ventilation (internal power supply)
  • Tow eye dimensions: 50mm (2in) for occasional / low speed towing
  • Dimensions: H 800mm (32in) L 1270mm (50in) W 782mm (31in)
  • Weight: 157kg (346lb)
  • NCAGE: KD628
