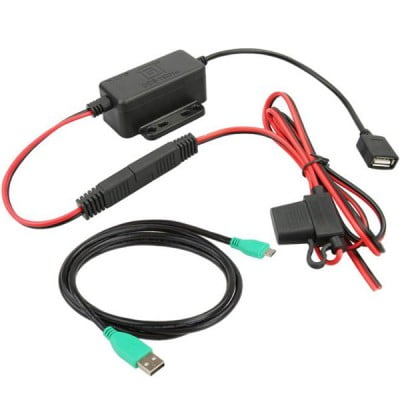

RAM MOUNT GDS® MODULAR HARDWIRE CHARGER WITH MUSB CABLE
Categorías: ELECTRICAL, POWER-CONVERTERS
Part# 11-16827
Overview
| The GDS® Modular Hardwire Charger with mUSB cable is the ideal solution for providing power to any GDS® vehicle solution. With the quick disconnect feature, easily connect any USB Type A charging cable. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. Compatible with any 5V device with a current requirement of 2.5A or less. |
Specifications
- GDS® Specifications:
- Input Range: 8V – 40V DC
- Output Voltage: 5VDC
- Output Current: 2.5A max
- Output Connector Type: 90° DC plug
- Input Cable Length: 1.2 Meters overall length including 2 Pole Flat Marine Connector
- Output Cable Length: .2 Meters (w/ included 1.2M Micro USB 2.0 Cable)
- Operating Temperature Range: -10°C to +70°C
- Storage Temperature Range: -40°C to +70°C
- Overvoltage/Load Dump Compliance: Meets SAE J-1113
- Integrated Short Circuit Protection (SCP)
- FCC, CE, WEEE, and ROHS Compliant
- USB 2.0 BC 1.2 DCP Support
- Note: The “U” in the part number reflects product packaged in poly bag.
- Weight:0.4 lbs.
