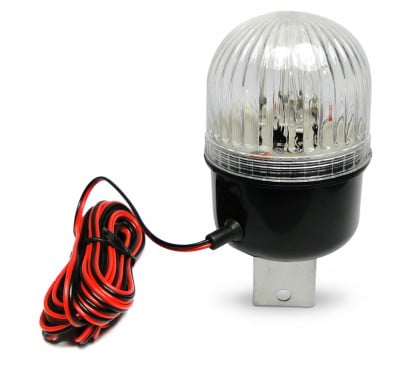

SKYSPORTS BRIGHT STAR STROBE – CLEAR

Part# 11-07769

Overview

Note: This strobe is clear. In order to make it red or green, you will need to purchase the red or green replacement lens separately. Please see “Accessories” to purchase the replacement lenses.

Measuring only 4″ high by 2 3/4″ diameter, the BrightStar strobe weighs less than 5 ounces! Special dual xenon flashtube arrangement provides ultra-bright flash visible for over 3000′ in daylight, much more at dusk and dawn. No separate power pack is required, all electronics are fully contained in the strobe itself. Special radial fresnel lens is clear Each strobe draws less than 300ma. Mounting bracket included. Buy two for wing-tip installation.
Must be run from 12 volt battery.

Features

  • Operates on 12VDC (12′ lead is hardwired to unit)
  • Completely self-contained
  • Water-resistant
  • Ultra-compact
  • Meets FAR 103
  • Bright 8 joule flash
  • 40 flashes/minute

Specifications

  • Weight: 4.5 ounces
  • Case size 4″ h x 2-3/4″ d
  • Operates on 12vdc (12″ lead is hardwired to unit)
  • 10-15 vdc (13.6 opt)
  • 300-500 ma current
  • Rate: 40 flashes per minute (fpr)
  • Input flashlamp energy: 8 joules
  • Avg. Power: 7 watts
  • Effective candelas: 400
  • Visibility: 3000ft (day) ; 3 miles (night)
  • Lens: modified fresnel
  • Lamp: dual xenon flashtubes
