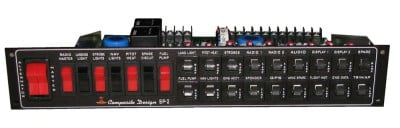

STANDARD POWER PANEL

Categorías: ,

Part# 11-11675

Overview

The Composite Design Standard Power Panel was revised February 2011. This is the first change to this product in 18 years. Changes were made to compliment modern avionics and instrumentation.

Specifications

  • Dimensions: 2.25”H x 13.00”W x 7.75”D
  • Weight: approx. 2.75 pounds
  • Panel Specifications:
    Capacity:17.5 V max. at 80A (Main Buss)
    Radio Buss: 25A cont.
    Essential Buss: 10A cont.
  • Switches:
    Master
    Alternator Field
    Radio Master
    Landing Light
    Strobe Lights
    Nav Lights
    Fuel Pump
    Pitot Heat
    Spare Circuit control
  • Circuit Breakers – Main Buss:
    Landing Light
    Strobes
    Nav Lights
    Fuel Pump
    Pitot Heat
    Spare
    Engine Accessories
  • Circuit Breakers – Radio Buss:
    Radio 1
    Radio 2
    Transponder
    GPS
    Audio
    Avionics Spare
  • Circuit Breakers – Essential Buss:
    Display 1
    Display 2
    Flight Inst
    Engine Data
  • This Panel has Essential Buss back-up capability for use with the Composite Design Power Guard Module and back-up battery
