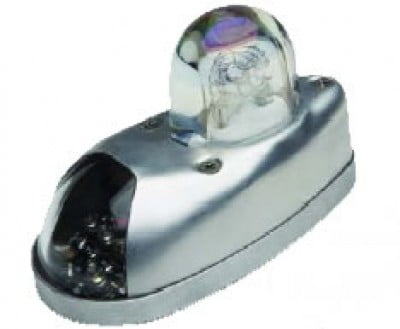

WHELEN® 70946 SERIES LED POSITION/STROBE LIGHT – AVIATION GREEN

Part# 11-05009

Overview

The Model 70946 Series are combination LED forward position/strobe lights designed to replace the existing combination nav/strobe lights typically seen mounted on most general aviation and helicopter applications (ref Whelen A650PG/PR Series). They have all the advantages associated with using LED’s as a light source, improved reliability, reduced operating costs, while providing the strobe anti-collision light all in the same package. (28VDC Only)

Specifications

  • Position Light Power Consumption: 0.35 amps @ 28 VDC
  • Weight: 0.7 lbs
  • Exposed Height: 2.85″
  • Exposed Length: 4.25″
  • Mounting Hole Pattern: 1.75″
