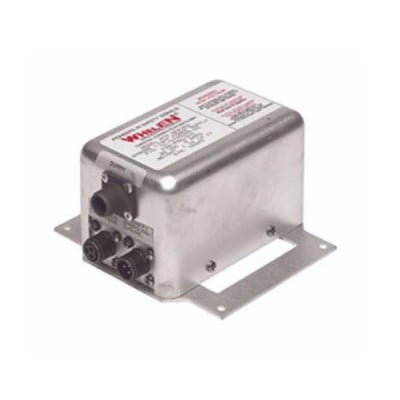

WHELEN 90099 SERIES POWER SUPPLY

Categorías: ,

Part# 11-17426

Overview

Model 90099 series produces 24 joules of energy, Single Flash, to one light assembly. It flashes simultaneously with up to three other like units by connecting with 18 gauge wire. This power supply operates at 28 VDC. It is used on the DeHavilland Dash 8 aircraft.
California Prop 65 Warning SymbolWARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specifications

  • Drawing Number: 90099
  • Power Consumption: 2.0 Amps @ 28 VDC
  • Weight: 1.7 lbs. (771gm)
  • Length: 5.0” (127mm)
  • Width: 3.12” (79mm)
  • Height: 3.12” (79mm)
