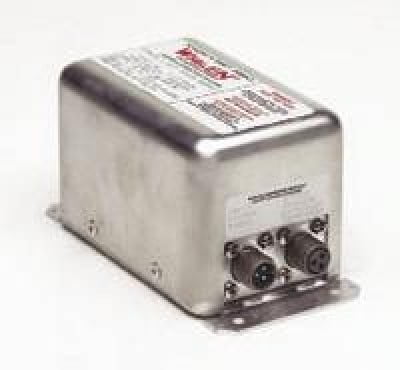

WHELEN 90101 SERIES POWER SUPPLY
Categorías: ELECTRICAL, Power Supplies
Overview
| Model 90101 series is similar to the HTCF but has military connectors. It is available in SingleFlash or CometFlash. Several different configurations are available for application specific installations. |
Specifications
- Power Consumption: 4 Amps @ 14 VDC; 2 Amps @ 28 VDC
- Weight: 1.7 lbs (771gm)
- Length: 5.0 (127mm)
- Width: 3.12 (79mm)
- Height: 3.50 (89mm)
- Approvals: FAA/TSO-C96a
