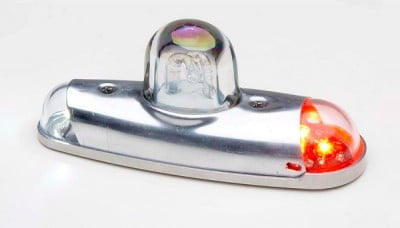

WHELEN 90340 SERIES STROBE ANTI-COLLISION / LED POSITION LIGHT ASSEMBLY
Overview
| 90340 series is an all inclusive wing tip mounted strobe anti-collision/position light assembly utilizing LED’s for both the forward & tail position lights, eliminating the need for a tail mounted position light. The LED’s provide a significant reduction in current draw over conventional position light bulbs. The strobe light lens assembly is radio shielded for maximum EMI/RFI protection. Direct replacement (exact footprint) for the Whelen Model A600PG/PR series without replacing the current strobe power supply. Single set of flying leads operates both forward & tail nav on 28 VDC version, and one set each of flying leads for the forward & tail nav on the 14 VDC version.
|
 | WARNING: This product can expose you to chemicals including Methylene Chloride, which is known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reference Chart
(FAA TSO-C96a / TSO-C30c Types II & III) | ||
(FAA TSO-C96a / TSO-C30c Types I & III) | ||
(FAA TSO-C96a / TSO-C30c Types II & III) | ||
(FAA TSO-C96a / TSO-C30c Types I & III) |
Specifications
- LED Navigation Light Power
Consumption: 0.5 amps @
14 VDC, 0.25 amps @ 28 VDC - Weight: 0.60 lbs. (272gm)
14 VDC, 0.65 lbs. (295gm) 28 VDC - Exposed Height: 2.70” (69mm)
- LED Colors: Aviation Red, Aviation Green & Aviation White 1.1 lbs. (499gm)
- Lens: Clear RFI coated glass: strobe, Clear Polycarbonate: Navigation Lights
