WHELEN HALOGEN FLASHING ANTI-COLLISION LIGHT 90044 SERIES
Categorías: ELECTRICAL, Position Lights
Overview

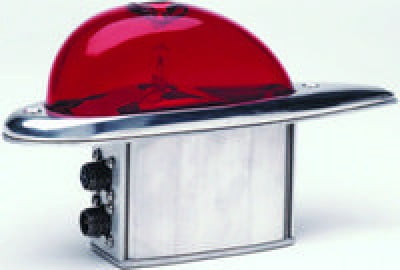

| 90044 series self-contained, 150 watt, quartz halogen flashing anti-collision light. Factory installed on Lear 31, Falcon 900 and Cessna Citation X. It is also a direct replacement for oscillating beacons on most corporate aircraft.To determine model required for replacement, the following information is needed: Lens color (red or white), upper or lower mounting location, number of mounting holes (5, 8, or 9), weight and position installed. Beacons installed on the rudder, (example: Citations and Barons) require a 2.25 lb. assembly. |
Specifications
- Weight: 1.6 lbs. (726gm) to
- 2.5 lbs. (1134gm)
- Height: 5.5” (140mm)
- Power Consumption: 3.25 amps
- @ 28 VDC
- Replaces: G9950-( ), 40-0100-( ), 30-2140-( ), 40-0117-( ), 40-0127-( ), 30-2647-( )
