WHELEN MODEL 70509 FLASHER
Overview

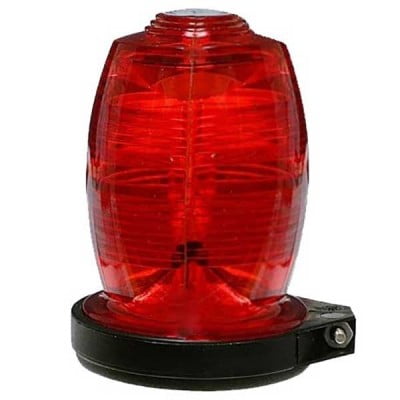

| Self-contained halogen flashing anti-collision light with the same mounting pattern as the factory installed beacon on single engine Cessna’s 1967 & later. Available in three different lens colors, Aviation Red, Aviation White and Split Aviation Red/White. When used in conjunction with the model 50519 mounting adapter, it can replace rotating beacons with the 3-3/4 dia. mounting hole. Note: Not recommended for installation on helicopters or twin engine aircraft. |
 | WARNING: This product can expose you to chemicals including Methylene Chloride, which is known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Specifications
- Drawing Number: 70509
- Weight: 0.27 lbs. (122gm)
- Height: 3.75 (95mm)
- Diameter: 2.65 (67mm)
- Power Consumption: 2.7 amps @ 14 VDC, 1.3 amps @ 28 VDC
