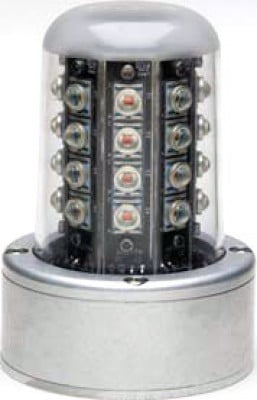

WHELEN MODEL 71080 SERIES LED BEACON 28VOLT (FOR ROTORCRAFT)
Categorías: ELECTRICAL, PIN-&-SOCKET-TOOLS
Part# 11-06173
Overview
| MODEL 71080 SERIES LED BEACON (For Rotorcraft) Model 71080 Series LED beacons are FAA TSO’d self-contained LED anti-collision lights (Ref. Class I – 150 effective candlepower). They are designed to replace existing beacons utilizing a 2-1/2″ diameter footprint. They can also replace remote mounted strobe lights (ref. Whelen A470 series) allowing for removal of the strobe power supply. Internal mounting plate provided with choice of mounting holes to retrofit most existing mounting patterns. |
Specifications
- Power Consumption: 28 VDC
- LED Colors: Aviation Red
- Lens: Aviation Clear, Polycarbonate
- Weight: 0.6 Lbs (272gm)
- Exposed Height: 3.64″ (92mm)
- Exposed Width: 2.6″ (66mm)
- Exposed Length: 4.61″ (117mm
