WHELEN MODEL 71110 SERIES ANTI-COLLISION LED POSITION LIGHT ASSEMBLY

SKU: N/D Categorías: ,

892.98$954.91$ + IVA

Overview

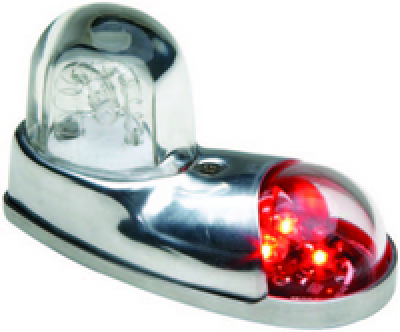

71110 series is a wing tip mounted strobe anti-collision/position light assembly utilizing LED’s for the forward position lights. The LED’s provide a significant reduction in current draw over conventional position light bulbs. The strobe light lens assembly is radio shielded for maximum EMI/RFI protection. Direct replacement (exact footprint) for the Whelen Model A650PG/PR series without replacing the current strobe power supply. Navigation light portion is wired with flying leads.
California Prop 65 Warning SymbolWARNING: This product can expose you to chemicals including Methylene Chloride, which is known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Reference Chart

Mfg Model#
Description
Part No.
7111001
Position green, 14 VDC
(FAA TSO-C96a / TSO-C30c Type II)
11-05630
7111002
Position red, 14 VDC
(FAA TSO-C96a / TSO-C30c Type I)
11-05633
7111003
Position green, 28 VDC
(FAA TSO-C96a / TSO-C30c Type II)
11-05635
7111004
Position red, 28 VDC
(FAA TSO-C96a / TSO-C30c Type I)
11-05636

Specifications

  • LED Colors: Aviation Red, Aviation Green
  • LED Navigation Light Power Consumption: 0.25 amps @ 14 VDC or 28 VDC
  • Weight: 0.45 lbs. (204gm) 14 VDC, 0.50 lbs. (227gm) 28 VDC
  • Exposed Height: 2.70” (69mm)
  • Lens: Clear RFI coated glass: strobe, Clear Polycarbonate: Navigation Lights
    • color:

      Green, Red

    • voltage:

      14 Volt, 28 Volt
