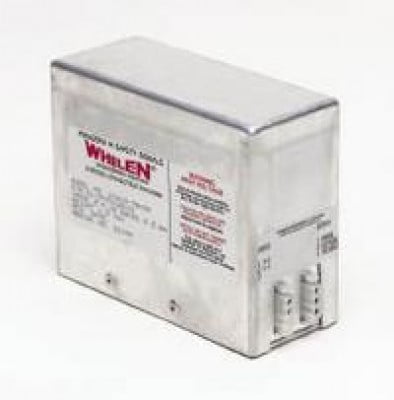

WHELEN POWER SUPPLIES MODEL A1610 SERIES
Part# 11-03666
Overview
| A1610 series produces 22 joules of energy. This wing tip mounted power supply will operate from 10 to 30 VDC. Piper P/N 481-228 |
 | WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Specifications
- Drawing Number: 70168
- Power Consumption: 4 amps @ 14 VDC; 2 amps @ 28 VDC
- Weight: 1.5 lbs. (680gm)
- Length: 5.18” (132mm)
- Width: 2.18” (55mm)
- Height: 4.15” (105mm)
