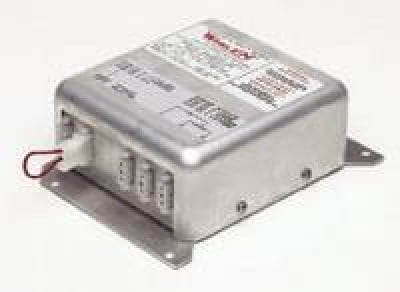

WHELEN POWER SUPPLIES MODEL HDHCF SERIES
Part# 11-03632
Overview
| HDHCF series provides simultaneous flashing, alternate flashing or both (see HDACF for functions). It directly replaces factory installed units on Hughes 500 Series Helicopters. Unit can directly replace 60-1431 -1 & -3 power supplies without wiring or baseplate modifications. This power supply will operate from 10 to 30 VDC. |
 | WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Specifications
- Drawing Number: 70117
- Power Consumption: 7.0 amps @ 14 VDC; 3.5 amps @ 28 VDC
- Weight: 2.1 lbs. (953gm)
- Length: 5.50” (140mm)
- Width: 5.0” (127mm)
- Height: 2.37” (60mm)
