Overview

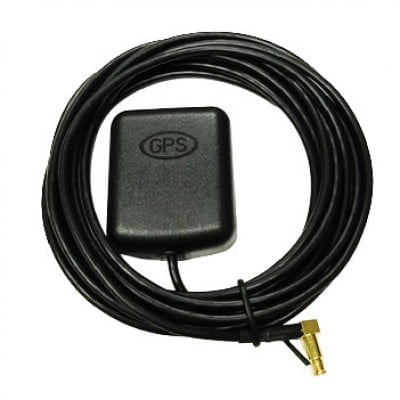

| External antenna for the iFly 700 GPS. The iFly 700 includes a very sensitive internal antenna. However different aircraft and cockpit locations can have different results; if you are experiencing trouble getting or keeping a GPS lock, this should solve that problem.(Note: the product photo does not reflect this, but this antenna includes an MCX adapter designed to work with the iFly) |
Specifications
- Antenna Type Active
- Weight 4 oz
- Cord Length 16′
- Connector MCX
- Antenna Size 1.85″ X 1.65″ .45″
- Operating Voltage 2.5~5.0V
- Antenna Element Gain 5.0dBi typ. / R.H.C.P
- Noise Figure 1.5dBi typ.
- VSWR 2.0: 1Max.
- LNA Gain 27dB typ
