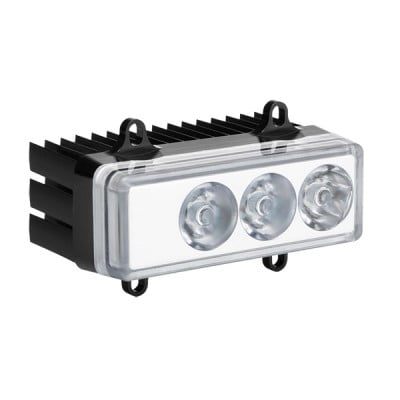

AEROLEDS MICROSUN LANDING LIGHT NON-TSO FOR EXPERIMENTAL AIRCRAFT

Part# 11-07779

Overview

The MicroSun is a perfect solution for applications that require an abundance of light but have limited mounting space available. Operational from 9-38Vdc, the Microsun provides over 1800 lumens of light and consumes 24 Watts of power and is suitable for a taxi light or landing light for aircraft with slower approach speeds. Popular mounting Locations include the leading edge of wing or struts, wingtip cutout, landing gear or cowling. The MicroSun includes an integrated “wig-wag” or “pulse” feature for extra recognition while in flight.

The MicroSun is protected against overheating with a built in protection circuit, is protected from lightning transients and ESD, voltage spikes, reverse voltage, and undervoltage conditions.

Polycarbonate leading edge windows are commonly used with wing-mounted landing lights, and are typically available for most airplane types from a number of third-party suppliers. The narrow profile (1 1/4″x3″) makes installation in tight places a snap.

Specifications

  • Power: 21 watts (1.5amps @ 14V )
  • Weight: 3.7oz
  • Height 1.2’”
  • Width: 3.1″
  • Depth: 2”
  • Light Output: 1500 lumen, 8,000 candela
  • Light pattern 30 degrees focused
  • 5 year warranty
