AEROTOUGH GF™ LANDING GEAR DOOR HINGE BUSHINGS SET FOR BONANZA AIRCRAFT
MFR Model# M1000
576.18$ + IVA
Overview
| Main landing gear door hinge kits from Marsh Brothers Aviation for all models of Beech Bonanza and Debonair.
Avoid unnecessary and costly repairs by installing AeroTough™ GF polymer bushings. This preventative maintenance solution will ensure that you will never have the complications with seized bushings that traditional metal bushings can exhibit. Lifetime lubricated AeroTough™ bushings prevent problems:
Be proactive: The cost to repair greatly exceeds the price of prevention. Don’t wait for disasters to occur. Make the change now! Accessory Notes:
|
Features
- An essential part of your landing gear maintenance checklist is the need for periodic lubrication of hard-to-get-at door hinge bushings. Achieving proper lubrication is challenging because access is difficult. If these bushings are not lubricated regularly, corrosion will result. This can cause the bushing and sleeve to fuse together over time, resulting in problems with the door rigging and the operation of the aircraft. This could lead to an inoperable gear door or the cracking of the gear door – a safety issue for sure and at best, an expensive repair. Our kit is insurance against the possibility of future problems.
- The solution to this problem is AeroTough™ GF polymer bushings. These non-metallic bushings can be easily installed and will provide smooth grease-free operation. AeroTough™ bushings will never require lubrication. The polymer material is designed to incorporate its own lubrication. If someone doesn’t know our bushings have been fitted and decides to squirt some lubrication into the hinges, it’s no problem. Our bushings are quite happy to run in oil or grease – it’s just not necessary!
Specifications
- Approved for installation in U.S. registered aircraft by Federal Aviation Administration Supplemental Type Certificate # SA03343NY.
- Approved for installation in Canadian registered aircraft by Transport Canada Supplemental Type Certificate # SA13-39.
- Reaming may be necessary, depending on any damage to the airframe (if damage is present, it is typically caused by corrosion of the OEM parts).
- Corresponding Bonanza/Debonair OEM Part #: 105739X-ZP1050, 105740X-ZR0480, 105740X-ZJ0490.
- List of approved Beech models: 35-33, 35-A33, 35-B33, 35-C33, 35-C33A, 36, A36, A36TC, B36TC, E33, E33A, E33C, F33, F33A, F33C, G33, G36, H35, J35, K35, M35, N35, P35, S35, V35, V35A, V35B.
Manufacturer Q & A

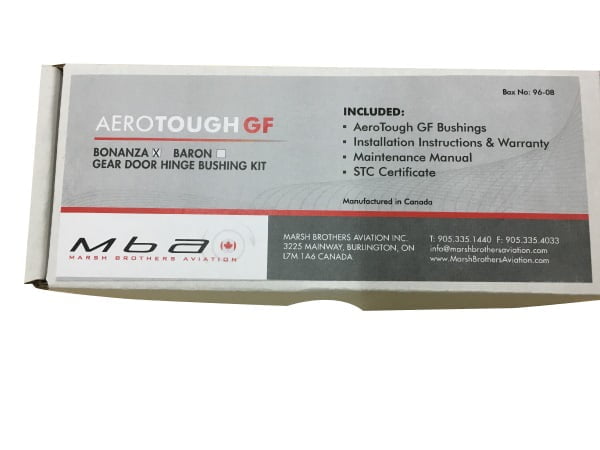

In The Box

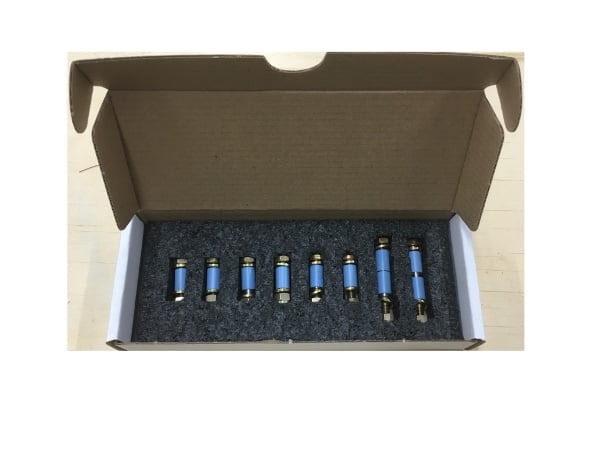

- 8 pre-packaged door hinge assemblies for direct replacement of OEM parts at each hinge location
- Detailed installation instructions
- Maintenance manual supplement
- Copies of the US and Canadian Supplemental Type Certificates
- An Authorized Release Certificate confirming regulatory compliance
Videos
Bonanza/Baron Landing Gear Door Installation of AeroTough GF Bushings
