AITHRE SHIELD EX 4.0 CO DETECTOR WITH ALTUS BUNDLE
Part# 11-17598
Overview

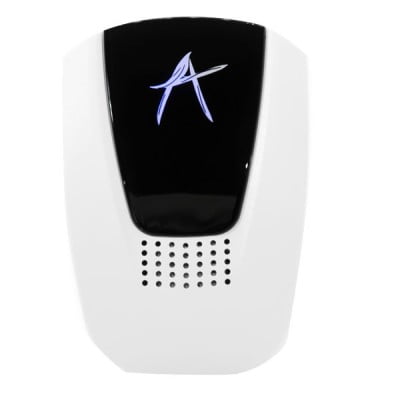

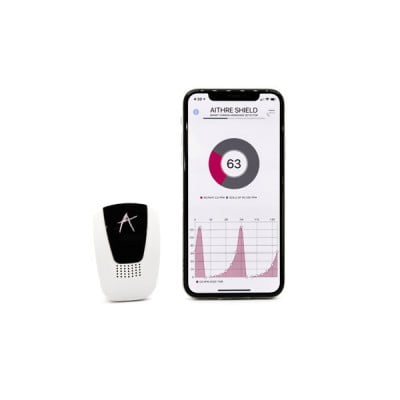

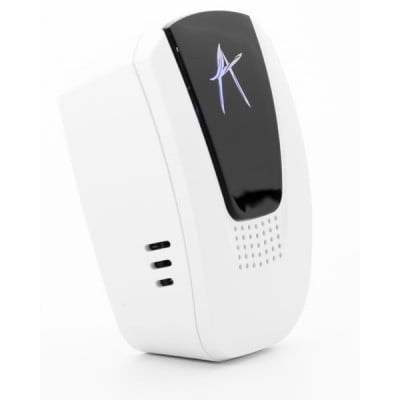

| The Aithre Shield 4.0 auto-pairs to your iOS device using the free Aithre Connect app. Readings are collected and graphed in the background and Siri notifies you via your iOS-paired headset when thresholds are crossed. In addition to the app, the Aithre Shield 4.0 itself also has a glowing light indication of the CO levels and an alarm that is triggered at 50 ppm.

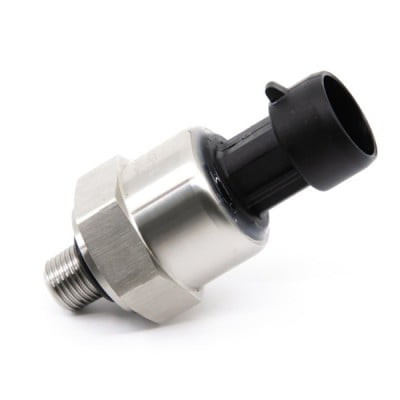

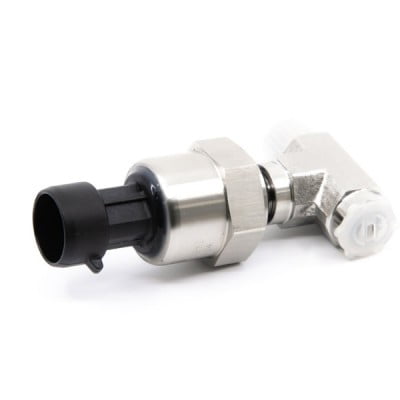

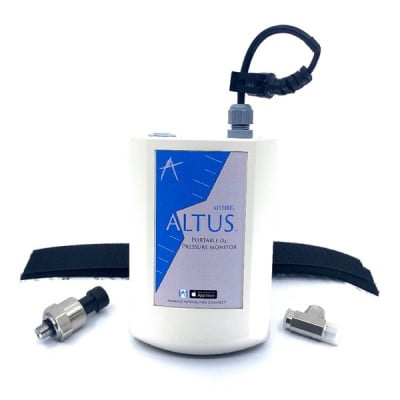

The Shield 4.0 portable detector is sensitive and responsive at the lowest levels of CO gas between 0 and 255 ppm to detect and manage CO before it becomes an emergency. With no recalibration required for 10 years, you’ll enjoy many years of safe flying with the Aithre Shield 4.0. The first portable oxygen tank monitor that wirelessly pairs to your iOS device for pressure, flow rate, and time-remaining monitoring. Features Siri voice notifications via a paired headset when pressure drops below 500 psi or when threshold altitudes are crossed. The Altus removable straps to your oxygen tank and includes a high pressure T-fitting so you can keep your manual pressure gauge for backup. |
Features
Altus Compatible:
Wirelessly retrieves tank psi data from the Aithre Altus to allow portable oxygen tank pressure to be provided to your avionics along with carbon monoxide data
Output to Avionics:
Simple installation using just four wires – 5v power, ground, analog CO output, and analog PSI output (requires GEA 24 for Garmin, RDAC for MGL, and SV-EMS for both Dynon and Advanced – the AF-EMS cannot be used with the EX 3.0)
iOS:
Integrated with the Aithre Connect iOS app to provide discrete and trend CO levels plus Siri voice notifications to your headset (when paired to your iOS device)
(Click Here for the Apple App Store for Aithre Connect)
Sensitive:
Under 30 second sensor response between 0 – 255 ppm with 1 ppm resolution
Compact:
Measures just 1.97” x 1.97” x 0.67” tall and weighs 1.1 ounces (mounting flange adds 0.75″ to the base width)
Intuitive Graphical Indication:
This device is compatible with iOS, Garmin G3X, Advanced Flight, and Dynon Skyview and outputs as an circular dial and trend graph (iOS), a moving bar (G3X), a graphical dial (Dynon and Advanced)
Temperature Independent:
Internal temperature adjustment circuit that compensates for temperature induced errors in the sensor between -10 C to +50 C
No Recalibration:
State-of-the-art sensor requires no recalibration for 10 years under normal operating conditions
Pressure & Altitude Independent:
The detector is not affected by pressure and altitude changes
Hand Calibrated:
Every Aithre detector is individually calibrated using high precision calibration CO gas and comes with a signed certificate of calibration
6000 MSL Designed & Assembled:
Ketchum, Idaho
Specifications
- Dimensions: 2 inches tall
- Weight: About an ounce
Benefits
Sensitive:
Under 30 second sensor response between 0 – 255 ppm with 1 ppm resolution
iOS: Aithre Connect App integrated, providing trend data plus popup and Siri notifications to your headset (when paired) when threshold CO levels are crossed.
Click Here for the Apple App Store for Aithre Connect
Temperature Independent:
Internal temperature adjustment circuit that compensates for temperature induced errors in the sensor between -10 C to +50 C
Compact:
Measures just 2 inches tall and weighs about an ounce
No Recalibration:
State-of-the-art sensor requires no recalibration for 10 years under normal operating conditions
Pressure & Altitude Independent:
The detector is not affected by pressure and altitude changes
Rechargeable:

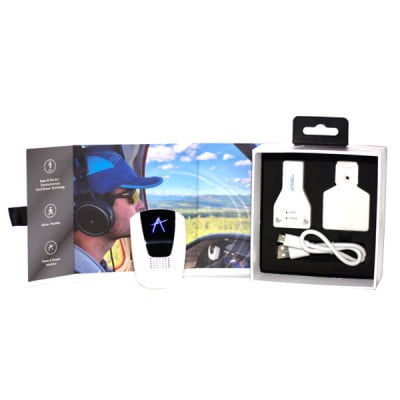

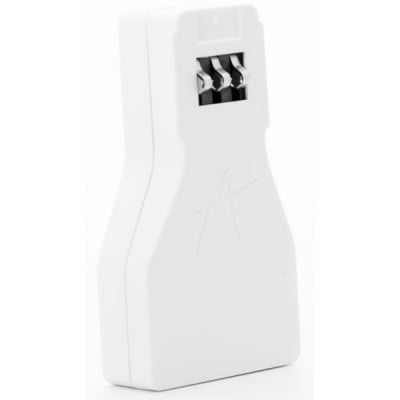

Includes a custom charger that duals as a mount and that allows charging during use via USB.
Clip Mounted:

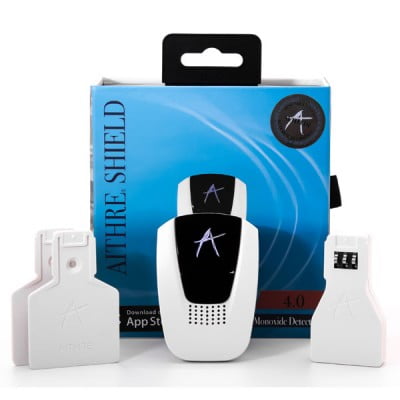

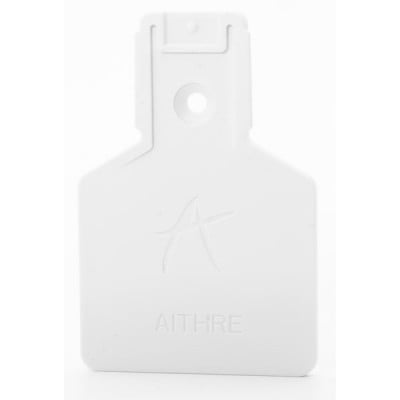

Includes 2 custom clips for easy mounting in various locations like your aircraft and hangar
Hand-Calibrated:
Every Aithre detector is individually calibrated using high precision calibration CO gas and comes with a signed certificate of calibration
