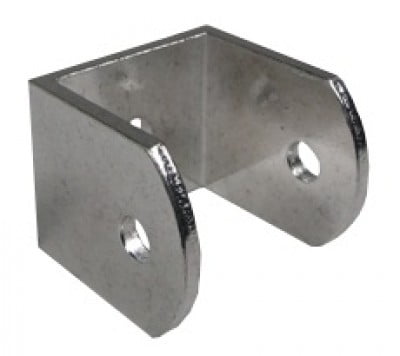

ALUMINUM BRACKETS

ALUMINUM BRACKETS - Image 2

ALUMINUM BRACKETS

Categorías: Brackets, HARDWARE

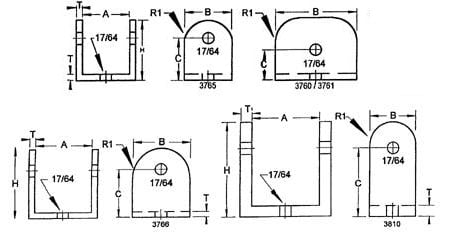

*ALUMINUM BRACKETS

Model 3772 | A .500 | B .750 | C .500 | H .750 | T .125 | R1 — | Alloy 6061-T6 | No. 05-01930

Modelo 3765 | A 1.000 | B 1.000 | C .875 | H 1.250 | T .125 | R1 .500 Alloy 6063-T5 | No. 05-01928

Model 3761 | A 1.000 | B 1.750 | C .906 | H 1.250 | T .125 | R1 .750 | Alloy 6063-T5 | No. 05-01927

Model 3766 | A 1.250 | B 1.250 | C 1.062 | H 1.500 | T .125 | R1 .750 | Alloy 6063-T5 | No. 05-01929

Descripción

Overview

These brackets can be used in many applications as ultra light structures
