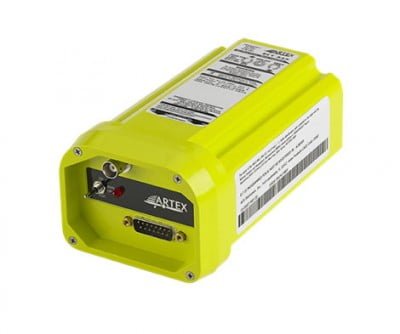

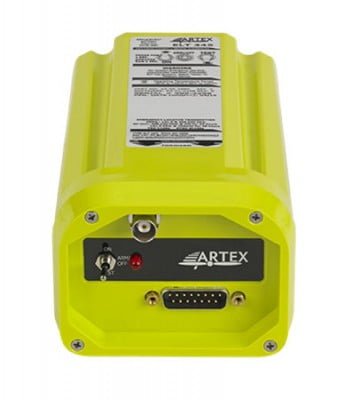

ARTEX ELT 345 GPS / 406 / 121.5 SLIM KIT WITH 15 INCH WHIP ANTENNA – FAA TSO
Overview
| The ARTEX ELT 345 transmits on 406 MHz and 121.5 MHz frequencies and can provide position accuracy with an optional GPS input thanks to the built-in GPS navigational interface. GPS data is embedded from the first emergency transmission and provides Search and Rescue personnel with the aircraft location, within 100 meters, in less than a minute.
This unit can be activated manually with (remote switch or ELT switch) or automatically (the G-switch detects a 2.3G or greater impact). Once activated, the ELT 345 transmits a 406 MHz signal with the beacon’s unique registration information and embedded GPS coordinates to the closest search and rescue agency via the Cospas-Sarsat satellite system. The beacon also transmits a 121.5 MHz homing signal to assist search and rescue to pinpoint the aircraft’s GPS location. The ELT 345 provides a quick-and-easy retrofit opportunity with flexible installation options (Slimline two-wire remote switch that fits ACK and Ameriking – 2.08 x 0.75 Inches). The ELT utilizes the same RF output using only one coax cable to transmit both 406 MHz and 121.5 MHz signals through the compact 15-inch whip antenna. The ELT’s built-in navigational interface does not require aircraft power to operate—which results in lower installation costs—and the stainless steel mounting bracket supplied with the unit has a multiple hole mounting pattern to accommodate legacy footprints. FAA TSO C126b approved. |
Specifications
|
Model:
|
ELT 345 |
|---|---|
|
Product Number:
|
8108 |
|
Operating Frequencies:
|
406.040 MHz (+/- 1kHz) – Emission Designator 16K0G1D / 121.5 MHz (+/- 6.075 kHz) – Emission Designator 3K20A3X |
|
Output Power:
|
406 MHz: 5 W for 24 hours @ -20°C to +55°C, 121.5 MHz: 50 mW for 50 hours @ -20°C to +55°C |
|
Output Connector:
|
BNC Female |
|
GPS:
|
Built-in GPS Navigational Interface (NMEA 0183 or RS 232) |
|
Activation:
|
Automatic via G-Switch by 4.5 ft/sec (2.3 G) or Manual Activation |
|
Battery:
|
6 year Lithium (LiMnO2), Replacement Battery Part No. 8322 |
|
Temperature Certified to:
|
Operating: -20°C to +55°C, Storage: -55°C to +85°C |
|
Self Test Checks:
|
G-Switch Enabled, 406 MHz and 121.5 MHz Power, NAV system, Low Battery |
|
Remote Control:
|
ON/ARM/TEST |
|
Weight (with tray):
|
2.0 lbs (907.19 g) |
|
Measurements:
|
ELT Transmitter with mounting hardware installed: 6.40 (L) x 2.96 (H) x 3.78” (W) inches (16.26 x 7.52 x 9.60 cm) |
|
Approvals:
|
Cospas-Sarsat, FAA TSO, Industry Canada |
|
Antenna:
|
Black Whip Antenna |
|

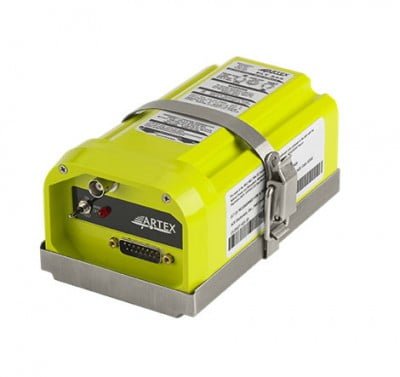

Mounting Tray and Strap:
|
P/N: 8323 (Universal mounting hole pattern fits 90% of existing ELT hole configurations) |
How it Works
- The ARTEX ELT 345 provides a quick-and-easy retrofit opportunity with flexible installation options such as a two-wire remote switch that does not require any aircraft power. Because it is a single output ELT, the ELT 345 utilizes the same RF output and only one coax cable to transmit both 406 MHz and 121.5 MHz signals. The built-in navigational interface does not require aircraft power to operate which greatly reduces the cost of installation. The stainless steel mounting bracket has a multiple-hole pattern configuration which makes the replacement of legacy ARTEX ELTs or old ACK, Kannad and AmeriKing ELTs quick and easy.
- Pair the ELT 345 with ARTEX’s exclusive online satellite confirmation testing system, 406Test.com, and get real-time beacon testing results, from the same satellites used by Search and Rescue, to ensure your ELT system is functioning properly. There is a reason that ARTEX ELTs are the choice of more aircraft manufacturers than any other; they trust ARTEX to build the highest quality products knowing they are used to save lives.
In The Box
- ELT 345
- 15-inch black whip antenna
- Slimline 2-wire remote switch (2.08 x 0.75 Inches)
- Buzzer
- Mounting tray
- 6 ft BNC to BNC coax cable
- Install kit.
-
