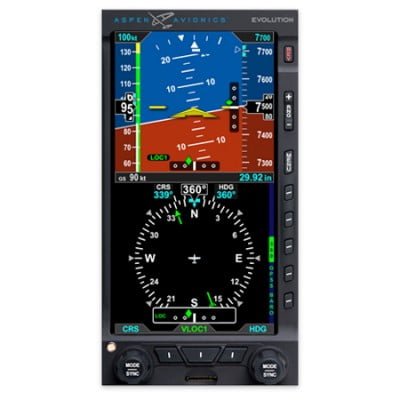

Overview
| Versatile Performance – presents attitude information with altitude, airspeed, vertical speed plus DG/CDI course deviation indicator into a single display with a backup battery. Includes Global Positioning System (GPSS) Steering, and attitude heading reference system (ADAHRS).
Reliable – With redesigned electronics and new glass, the Evolution E5 has a bolder and brighter display and offers higher reliability, more capability and increased processing speed all while retaining Aspen’s unique form factor design that keeps installation costs down. Affordable – real glass Compatible – works with your panel’s existing avionics Autopilot – interfaces to the new TruTrak Vizion Autopilot and is compatible with most legacy autopilots. Simple Installation – the unique form-fit factor design slides into existing panel—one install does it all. Upgradeable – affordably add HSI and other features such as ADS-B, Angle of Attack, Synthetic Vision and Hazard Awareness with an easy upgrade path that leverages your Evolution E5 investment without unit replacement. Smart Investment – increases aircraft value, situational awareness. |
Features
- Backup attitude indicator not required
- Consolidates traditional attitude indicator and directional gyro (DG) into a single display
- Autopilot compatibility interfaces to the new TruTrak Vizion Autopilot
- Compatible with most legacy autopilots
- Includes Global Positioning System (GPSS) Steering, and attitude heading reference system (ADAHRS)
- Large, 6.0″ diagonal, 400 x 760 pixel TFT Active Matrix LCD screen with bolder/brighter resolution
- Rechargeable lithium-ion external backup battery with up to two hours of battery life
- Works with your panel’s existing avionics
- Unique form-fit design slides easily into existing panel cutouts
- Provides a path for removal of vacuum instruments*
- PFD Upgrades
- Easy and affordable Evolution E5 Non-TSO STC to full TSO Evolution 1000 Pro upgrade
- * In most circumstances. Actual vacuum instrument removal will vary by aircraft.
Specifications
General Specifications:
- Overall Dimensions: 3.50” W x 7.00”H x 4.15”D
- Weight: 2.9 lbs. with mounting bracket
- Display Type: 6.0” Diagonal TFT Active Matrix LCD
- Display Resolution: 400×760
- Display Backlight: High Intensity White LED
- Display Colors: 32,768
Operational Specifications:
- Operating Temp: -20°C to +55°C
- Storage Temp: -55°C to +85°C
- Max Operating Altitude (unpress.): 35,000 ft.
- Cooling: Integral Fan
- Max Humidity: 95% at 50°C
- Input Voltage: +9 to +32 Volts DC
- Max Current: 2.4 Amps @ 28 Vdc / 4.8 Amps @ 14 Vdc
I/O Specifications:
- ARINC 429 Inputs: 5 Low Speed
- ARINC 429 Outputs: 1 Low Speed
- RS-232 Inputs: 5
- RS-232 Outputs: 3
- Pitot / Static: Quick Connect
Certification Specifications:
- Software: RTCA DO-178B Level C
- Environmental: RTCA DO-160E
Documents
- Installation Manual (PDF)
-
MODELO:
Without ACU, With ACU
-
RSM Mounting:
Top, Bottom
