Overview

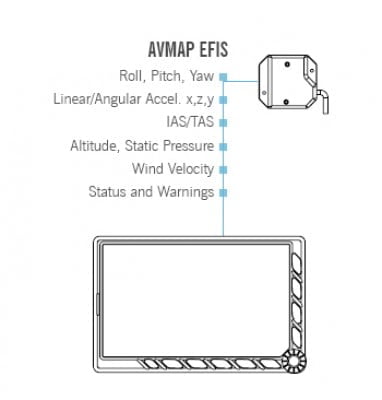

| The AvMap A2 ADAHRS is a compact fixed-install module providing Air Data, Attitude and Heading Reference. It connects to the docking station via USB and provides information that are displayed on the EKP V LCD.
The module contains solid-state gyros, accelerometers, magnetic field sensors and air data sensors; it should be connected to the aircraft pitot-static system, in order to take full advantage of its functionality. Designed for light-sport, ultra light and experimental aircrafts, the small and light weighted module can be installed in any orientation (thereafter a proper calibration procedure must be performed). |
Features

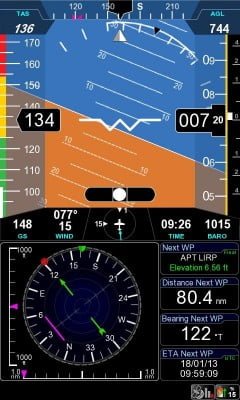

- When the A2 ADAHRS module is connected to EKP V, the Primary Flight Display mode becomes available on the 7” display.
- Airspeed and Altitude from pitot-static system.
- Attitude (roll, pitch and heading angle), side slip and heading information.
- Integration of TAWS into the PFD with AGL Altitude indication.
- Wind indicator with wind components.
- Clear HSI display linked with EKP V flight planning function.
- Customizable data fields.
- PFD settings: Altimeter reference, Heading reference, Aircraft specific V-speed reference value (aircraft profiles).
Specifications
- 3-axis gyros, accelerometers and magnetometers
- Acceleration range (3 axis) +/- 8 g
- Rotation range +/- 1600 deg/s
- Air data sensors: range 10 to 250 kts, -1000 to 40000 ft
- Advanced data fusion capability
- Guided Calibration Procedure
- USB Interface
- UAV Navigation® technology inside
