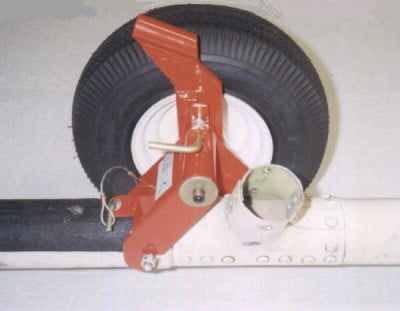

BRACKETT BELL 206B MECHANICAL POP OUT FLOATS
Categorías: SUMINISTROS PARA PILOTOS, Towbar Brackett
Part# 13-16070
1,940.95$ + IVA
Overview
| Jet rangers with the light weight 6 pac floats will require this single wheel design. The wheel assembly is locked in place with a pin into the skid tube. The wheels lock automatically in the full down position. Part number BDW-206SW is a complete ship set with 1 ea. handle bar. |
Specifications
- App. Models: Jet Ranger w/light weight 6 pac floats
- Skid tube dia. 3.00″
- Attach points, 3 pins .50 dia.
- Operation-Mechanical, 48″ bar
- Tire size 4.10 x 3.50-6 @ 85 psi.
- Approximate skid lift 3″
- Weight each side 21 lbs.
- Dimensions 14 x 14 x 22
- Color orange powder coated
- Remove prior to flight
