BRACKETT SCHWEIZER 269 300 MECHANICAL SET
Categorías: SUMINISTROS PARA PILOTOS, Towbar Brackett
Part# 13-16072
2,368.63$ + IVA
Overview

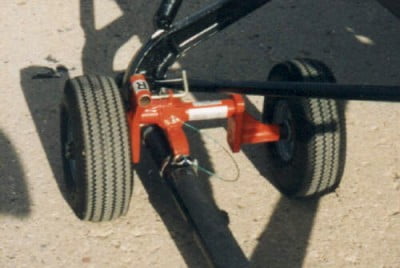

| Engineering designed this set of wheels to allow the operator to raise the helicopter while keeping the tail from hitting the ground. This was accomplished by installing a pickup plate on the skid tube at the center of mass near the cross tube. This pickup plate is installed with rivets per STC SR00138LA. The design is similar to the Bell Long Ranger (mini eye bolts), mounts in the same manner, and is locked in place with a pit pin. Part number BDW-300 is for a complete ship set with 1 ea. handle bar. |
Specifications
- App. Models: Schweizer/Huges 269/300
- Skid tube dia. 2.25″
- Operation-Mechanical, 48″ bar
- Tire size 4.10-4 @ 85 psi.
- Approximate skid lift 3″
- Weight each side 22 lbs.
- Dimensions 10 x 10 x 20
- Color orange powder coated
- Remove prior to flight
