CESSNA 172RG ENGINE BAFFLE KITS

Name: CESSNA 172RG ENGINE BAFFLE KITS
SKU: 5119
Availability: InStock

Overview

**Powder Coat: Only color is Hammertone (Gray) Powder Coating**

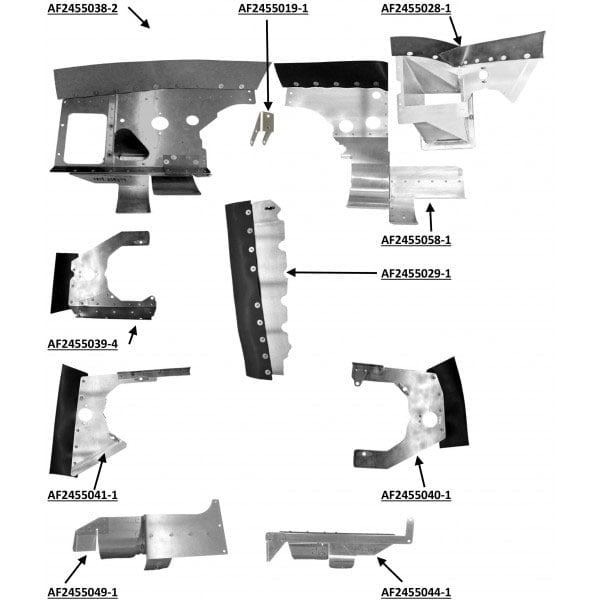

Complete Engine Baffle Components for Cessna 172RG.

These baffles are FAA/PMA approved, have the silicone seals attached, and arrive ready to install.

Airforms is the premier manufacturer of FAA-PMA replacement baffle components.

Note:

If aftermarket components of differing dimensions have been installed, it is the installer’s responsibility to adjust the baffles to fit. Components include: starters, alternators, exhaust, etc.
Mounting hardware is not included (nuts, bolts, screws, washers, retaining springs, and Tinnerman clips).

Baffles are made of 6061-T6 aluminum with many improvements over the original baffling.
Improvements include: stainless steel brackets where needed, hard rivet construction, half inch backing plates on seals, and an improved fit to increase engine cooling.
All Airforms engine baffles are designed to replace the factory installations and are individually interchangeable.
The baffle seals are fiberglass reinforced, high temperature silicone: black is standard. Orange or blue are available for an extra charge.
We also sell seal kits if your metal baffle pieces are in good shape.
