Overview
|

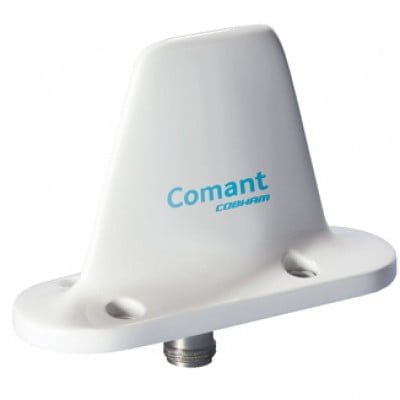

Frequencies Covered L Band / UHF blade antenna designed for high performance aircraft. Low profile, light weight antenna and is packaged in a molded body with metal mounting base to ensure stable environmental performance and resistance to vibration, rain erosion and cleaning solvents. Features vertical/omnidirectional pattern, wide band/high efficiency electrical performance and DC grounding for lightning protection. Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately. |
Specifications
|
Electrical
|
|
|
Frequency
|
806-960 MHz & 1030-1090 MHz
|
|
VSWR
|
1.75:1 @ 806 to 960 MHz
1.5:1 @1030 to 1090 MHz |
|
Polorization
|
Vertical
|
|
Radiation Pattern
|
Equivalent 1/4 Wave Stub
|
|
Impedance
|
50 Ohms
|
|
RF Power
|
100 Watts Average
|
|
Mechanical
|
|
|
Weight
|
0.32 lb
|
|
Height
|
3.25 inches
|
|
Material
|
High Density Polyurethane
|
|
Finish
|
White Polyurethane Enamel
|
|
Connector
|
TNC
|
|
Enviromental
|
|
|
Airspeed
|
600 Kts TAS @ 25,000 ft.
|
|
Temperature
|
-55 to 70 C
|
|
Atitude
|
50,000 ft
|
|
Federal Specifications
|
|
|
FAA TSO
|
C74c, Class 1A
|
|
Enviromental RTCA
|
DO-160C
|
