Overview

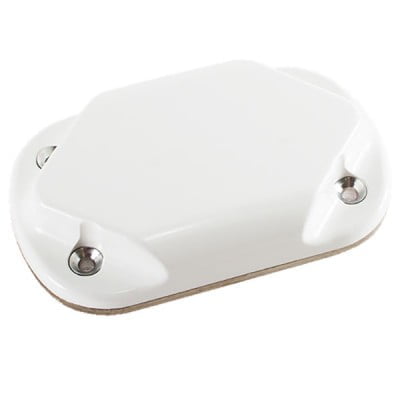

The CI429-200 ComDat WAAS GPS antenna meets the stringent FAA TSO C190 WAAS requirements while providing full Gamma 2 & 3 and LPV capabilities when connected to any DO-301 qualified WAAS GPS system. It uses a popular ARINC 743A footprint and constructed using tough Skydrol resistant radome and a nickel-plated, aluminum base plate. It includes a Nitrile O-ring providing a positive seal to the skin of the aircraft.Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately. |
Features
- Meets FAA TSO C190 WAAS requirements
- GPS frequency range: 1575.42 MHz
- Ideal to be used on most aircraft including business jets
Specifications
|
MODEL CI 429-200 COMDAT
|
|
|
Preamp Characteristics
|
GPS
|
|
Frequency
|
1575.42 +/- 10.23 MHz
|
|
VSWR
|
1.5:1
|
|
Polarization
|
RHCP
|
|
Radiation Gain Pattern
|
Omnidirectional
|
|
Impedance
|
50 Ohms
|
|
VHF Characteristics
|
VHF
|
|
DC Voltage
|
4 to 24 VDC
|
|
Impedance
|
50 Ohms
|
|
Mechanical/ Environmental
|
|
|
Weight
|
7.73 lbs Max.
|
|
TSO
|
C190
|
