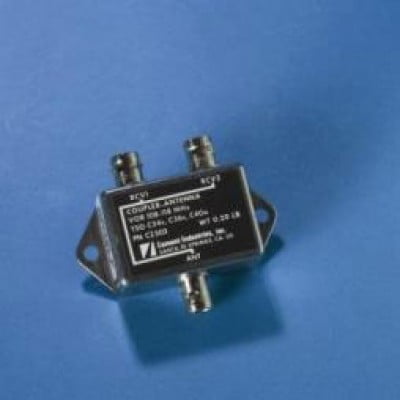

COMANT COUPLER (CI-502)

COMANT COUPLER (CI-502)

Categorías: ADS-B, AVIONICS

Part# 11-17975

Descripción

Overview

Frequency 108-118 MHz

Dual VOR coupler allows the simultaneous use of two VOR receivers from one VOR antenna. Compact design makes for easy installation.

Specifications

MODEL CI 502 COUPLER VOR
Electrical
Frequency	108-118 MHz
VSWR	1.5:1 Maximum
Insertion Loss	0.5 dB Maximum
Isolation	20 dB Minimum
Impedance RF	50 Ohms
Mechanical
Weight	0.25 lb. Maximum
Height	0.88 in. Maximum
Finish	Aluminum
Material	Die Cast Aluminum
Connector	BNC (Female)
Environmental
	Internal Mounting
Federal Specifications
FAA TSO	C34c, C36c, C40c
