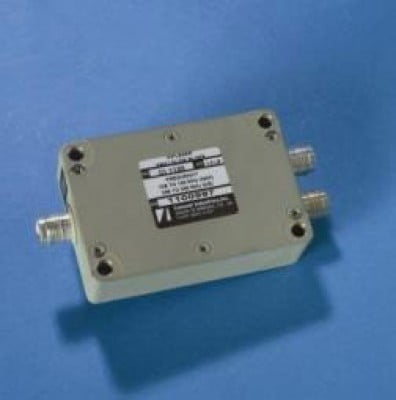

COMANT DIPLEXER SINGLE VOR (CI-1120)

Categorías: Antenas, AVIONICS

Part# 11-06853

Descripción

Overview

Frequency • 108-120 MHz & 325-340 MHz

Provides operation between a single VOR receiver and a single glide slope receiver from the same VOR/glide slope antenna. Offers polarized VOR and GS output connectors.

Specifications

MODEL CI 1120 DIPLEXER/ SINGLE VOR/ SINGLE GS
Electrical
Frequency	108-120 and 325-340 MHz
VSWR	1.5:1 Maximum
Insertion Loss	0.5 dB Maximum
Isolation	40dB
Impedance RF	50 Ohms
Mechanial
Weight	0.44 lb. Maximum
Height	0.812 in. Maximum
Material	Die Cast Iron
Finish	Flat Grey Epoxy Paint
Connector	TNC (Female)
Environmental
Internal Mount
Federal Specifications
MIL Standards	MIL-E-5400
	MIL-STD-810B (Vibration)
	MIL-B-5087
	MIL-C-39012 (Connector)
