Overview
|

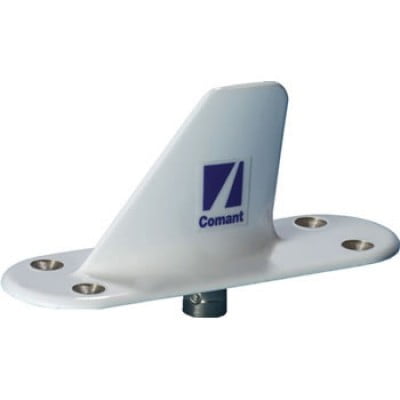

Frequency • 960-1220 MHz &1030-1090 MHz All metal, low profile antenna is designed for business jet and commercial high speed aircraft. With a popular four hole mount and connector with open path to ground, this antenna is ideally suited for those aircraft equipped with standard and Mode S transponders. Tough one piece construction provides 175 lbs. side load capability. Moisture failure is prevented with completely sealed construction. Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately. |
Specifications
|
MODEL CI 110-40 DME/XPDR
|
|
|
Electrical
|
|
|
Frequency
|
960 to 1220 MHz |
|
VSWR
|
1.5:1 960 to 1220 MHz |
|
Polarization
|
Vertical |
|
Radiation Pattern
|
Omnidirectional – Equivalent to 1/4 Stub
|
|
Impedance RF
|
50 Ohms
|
|
Resistance DC
|
Open Circut
|
|
Power RF
|
Peak 3KW Average 100 Watts
|
|
Mechanical
|
|
|
Weight
|
0.25lb. Maximum
|
|
Height
|
2.20 in. Maximum
|
|
Material
|
Die Cast A380 Aluminum Alloy
|
|
Finish
|
Polyurethane Enamel
|
|
Connector
|
C |
|
Environmental
|
|
|
Temperature
|
-54ºC to +85ºC
|
|
Altitude
|
70,000ft.
|
|
Air Speed
|
600 Knots TAS at 25,000 ft.
|
|
Federal Specifications
|
|
|
RTCA Environmental
|
DO-160D
|
|
FAA TSO
|
C66b, C74c
|
|
RTCA MOPS
|
DO-144, DO-189
|
