Overview
|
Frequencies Covered Half wave dipole designed for interior mounting for GS reception. Integral ferrite balun can result in improved performance when propeller modulation is a problem. Note: Comant Antennas no longer come with a gasket or a template. Must order PN 09-05579 separately. Applications |
Specifications
|

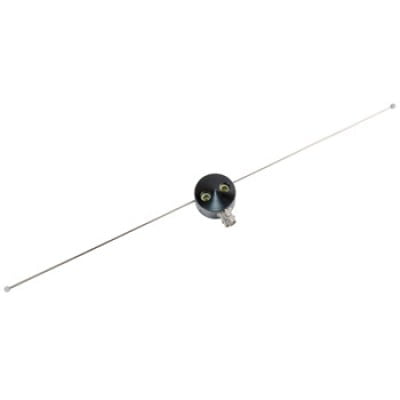

MODEL CI 193 GLIDE SLOPE ANTENNA
|
|
|
Electrical
|
|
|
Frequency
|
329-335 MHz |
|
VSWR
|
2.5:1 Maximum
|
|
Polarization
|
Horizontal
|
|
Radiation Pattern
|
Dipole
|
|
Impedance
|
50 Ohms
|
|
Power
|
Receive Only |
|
Gain
|
2.0 dB Nominal
|
|
Mechanical
|
|
|
Weight
|
0.15 lbs Maximum
|
|
Height
|
15 in. Maximum
|
|
Material
|
Derlin Housing/Brass Radiators
|
|
Finish
|
Black /Nickle
|
|
Connector
|
BNC
|
|
Environmental
|
|
|
Temperature
|
-55ºC to + 55ºC
|
|
Connector
|
|
|
RTCA Environmental
|
DO-160
|
|
FAA TSO
|
C34c
|
|
RTCA MOPS
|
DO-192
|
