Overview
|

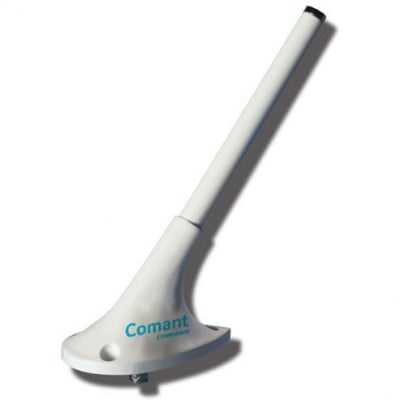

Frequency • 450-470 MHz Rugged monopole antenna particularly well-suited to the harsh environments experienced on the underside of an aircraft. Features a very compact 3-hole mounted die-cast aluminum base with the radiator encased in a glass laminate housing. Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately. |
Specifications
|
MODEL CI 200 UHF ANTENNA
|
|
|
Electrical
|
|
|
Frequency
|
450-470 MHz
|
|
VSWR
|
1.5:1 Maximum
|
|
Polarization
|
Vertical
|
|
Radiation Pattern
|
Omnidirectional |
|
Impedance
|
50 Ohms
|
|
Power RF
|
30 Watts
|
|
Mechanical
|
|
|
Weight
|
0.5lbs. Maximum
|
|
Height
|
6 -1/8 in. Maximum
|
|
Material
|
Alluminum Alloy / Fiberglass Whip
|
|
Finish
|
Polyurethane Enamel
|
|
Connector
|
BNC (Female)
|
|
Environmental
|
|
|
Air Speed
|
450 Knots TAS at 25,000 ft.
|
