Overview

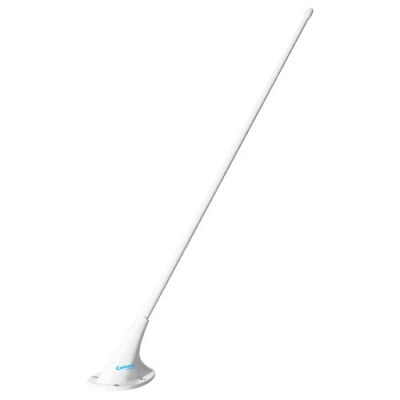

| Frequencies Covered 118-137 MHz Similar to the CI 109, the CI 121 is smaller in diameter and lighter at only 0.5 pounds. Features a tapered glass laminate housing and die-cast aluminum base. Offers standard mounting and appearance to many Cessna communication antennas. The CI 121 has been re-tested and upgraded to the new RTCA DO-160D environmental requirements and offers the 118 to 137 MHz frequency associated with DO-186A MOPS. Note: Gasket included. Applications
|
Specifications
|
MODEL- CI 121 VHF ANTENNA
|
|
|
Electrical
|
|
|
Frequency
|
118-137 MHz
|
|
VSWR
|
2.5:1 Maximum
|
|
Polarization
|
Vertical
|
|
Radiation Pattern
|
Omnidirectional
|
|
Impedance
|
50 Ohms
|
|
Power
|
50 Watts
|
|
Mechanical
|
|
|
Weight
|
0.5 lbs. Max.
|
|
Height
|
18.50 in. Max.
|
|
Material
|
Cast Housing / Fiberglass Whip
|
|
Finish
|
Polyurethane Enamel
|
|
Connector
|
BNC (Female)
|
|
Environmental
|
|
|
Temperature
|
-55ºC to +85ºC
|
|
Altitude
|
50,000 ft.
|
|
Airspeed
|
250 KTAS
|
|
Federal Specifications
|
|
|
RTCA Environmental
|
DO-160D
|
|
FAA TSO
|
C37d, C38d
|
|
Gasket
|
|
|
B12607-3
|
Cork Neoprene
|
