Overview
|

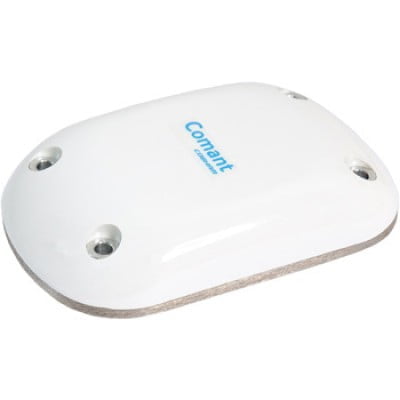

Comant’s ComDat® stand-alone GPS antenna with TNC connector. Matches the standard ARINC footprint found on many twins and business jets. Meets RTCA DO 160-D operating standards including direct effects lightning. Designed to operate with 26.5 dB panel mount GPS receivers. Certified FAA TSO-C144 for GPS and GPS WAAS Class Gamma 1 equipment. Not compliant for GPS WAAS Class Gamma 2 and 3 applications. Note: Comant Antennas no longer comes with a gasket or template. Must order PN 09-05579 separately. Not compatible with most portable GPS receiver systems. Applications Frequencies Covered |
Specifications
|
MODEL CI 401-220
|
|
|
GPS Preamplifier Characteristics
|
|
|
Frequency
|
1575.42±3MHz
|
|
VSWR
|
1.5:1 Max
|
|
Polarization
|
RHCP
|
|
Radiation Gain Pattern
|
Hemispherical
|
|
Output Impedance
|
50 Ohms
|
|
Gain @ 1575.42 MHz
|
26.5-31.5 dB
|
|
DC Voltage
|
4 to 24 Volts
|
|
DC Current Min/Max
|
25mA / 40 mA
|
|
Noise Figure
|
3.8 dB
|
|
Selectivity
|
-40 dB Min. @ Satcom 1626.5 MHz
|
|
Federal Specifications
|
|
|
Weight
|
6.2 oz. Maximum
|
|
RTCA Env. / TSO
|
DO 160-D / C144
|
|
Connector
|
TNC (F) GPS/ SMA (F) SAT
|
