Overview
|

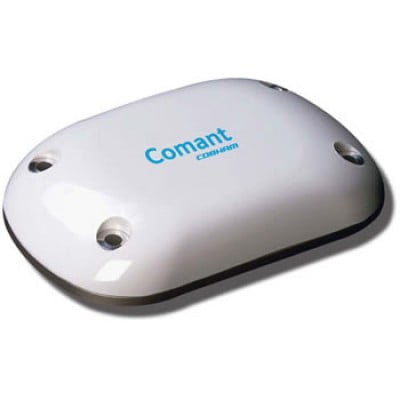

Comant’s ComDat® stand-alone GPS antenna with TNC connector. Matches the standard ARINC footprint found on many twins and business jets. Meets RTCA DO 160-D operating standards including direct effects lightning. Designed to operate with Garmin 17.0 dB gain panel mount GPS receivers. Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately. Not compatible with most hand held GPS receiver units. Applications Frequencies Covered |
Specifications
|
GPS Preamplifier Characteristics
|
|
|
Frequency
|
1575.42 +/-3 MHz
|
|
VSWR
|
1.5:1 Maximum
|
|
Polarization
|
RHCP
|
|
Radiation Pattern
|
Hemispherical
|
|
Output Impedance
|
50 Ohms
|
|
Gain@ 1575.42 MHz |
17 +/ -3db
|
|
DC Voltage
|
4-24 Volts
|
|
DC Current Min/Max
|
40 mA Max.
|
|
Noise Figure
|
3.5 dB
|
|
Selectivity
|
-40 dB min. @ satcom 1626.5 MHz
|
|
Mechanical / Enviromental
|
|
|
Weight
|
6.2 Ounces
|
|
RTCA Env. / TSO
|
DO 160-D / C 144
|
|
Connector
|
TNC (Female)
|
